Windows

Make a window, give it pages, and add a status bar.

A window is a box in the menu that holds your controls.

init.lua
local window = ui.Window({
    title = "My first mod", icon = "sparkles", width = 300, height = 170,
})

window:Label("Hello from my first mod.")
window:Toggle("Show the overlay", true)
window:Button("Say hi", function()
    ui.Notify("Hi!")
end, { primary = true })
A window titled My first mod with a sparkles icon in its title bar, a minimise button and a close button. Inside are a line of text, a switch that is on and a wide blue button labelled Say hi.

Switch the mod on, then press the key of your mod's windows to see it. Wax tells you once which key that is, and it is on the mod's card of the Mods page as Show / hide. The title bar has a button to roll the window up, and a cross to close it. The user can drag the window by its title bar and resize it by any edge or corner. The bottom right corner shows a grip.

Everything you add with window:Something(...) is a control. The Controls page lists them all.

Options

ui.Window takes one table. Every entry is optional.

OptionWhat it doesWhen left out
titleThe text in the title bar."Window"
iconAn icon shown before the title.No icon.
widthThe width.340, or 520 with side pages.
heightThe height.420, or 380 with pages.
x, yWhere the window first appears, counted from the top left of the screen.A little below and to the right of the window before it.
closablefalse leaves out the close button.true
resizablefalse makes a window the user cannot resize. It has no grip, its edges and corners do nothing, and it is always the size you give it. window:SetSize still works.true
keyThe key that shows and hides your mod's windows, such as "F6" or "Ctrl+K". The first window your mod makes decides. The user can pick another on the mod's card.Wax gives your mod a key.
visiblefalse makes the window hidden. Show it later with window:Show().true
nav"side" or "top" gives the window pages. See below.No pages.
nav_widthThe width of the page list of a "side" window.The theme's width.
rememberfalse stops Wax remembering where the user put the window.true

Give each window its own title

Wax remembers a window's place and size by its title. Two windows of one mod with the same title would share one place.

Show, hide and change

init.lua
local window = ui.Window({ title = "Tools", visible = false })
window:Label("Opened with F6.")

ui.Hotkey("F6", function()
    window:Show()
    ui.Open()
end)

window.Closed:Connect(function()
    print("The Tools window was closed.")
end)
FunctionWhat it does
window:Show()Shows the window, in front of the others.
window:Hide()Hides it. With the last window of your mod hidden, your mod is no longer up, and the menu closes once nobody's windows are.
window:SetVisible(shown)Shows or hides it.
window:IsVisible()true while it is shown.
window:SetTitle(text)Changes the title.
window:SetPosition(x, y)Moves it. It always stays on the screen.
window:SetSize(width, height)Resizes it. A window does not go below its smallest size.
window:SetMinimized(true)Rolls it up to its title bar. false rolls it back down.
window:IsMinimized()true while it is rolled up.
window:Destroy()Removes the window and everything on it.
SignalFires when
window.OpenedThe window is shown.
window.ClosedThe window is hidden.
window.PageChangedAnother page is chosen. Your function gets the page's name.

A window is removed when your mod reloads. init.lua then makes it again.

ui.Windows() gives a list of every window in the menu.

Resizing

The player resizes a window by dragging any of its four edges or four corners. You do nothing for it: every window has it.

  • The mouse pointer changes over an edge or a corner, and that piece of the window's outline lights up. It is brighter while it is held. The bottom right corner also shows a grip.
  • The edge across from the one that is dragged stays where it is.
  • Resizing stops at the window's smallest size and at the edges of the screen.
  • A window rolled up to its title bar cannot be resized.
  • Wax remembers the size, as it remembers the place.

The smallest size is 240 by 140 for a plain window. A window with side pages is never narrower than 420, and one with tabs along the top never lower than 200 or narrower than its tabs need.

resizable = false makes a window that is always the size you give it. It has no grip, its edges and corners do nothing, and a size remembered from before is not used. window:SetSize still works.

init.lua
local window = ui.Window({
    title = "Fixed", width = 280, height = 120, resizable = false,
})
window:Label("This window keeps its size.")

Lay your controls out so that they work at any size the player picks. Controls fill the width they are given, a Row shares it, and a page scrolls when the window is too low for it.

One key for your mod's windows

All windows of your mod come up together, with one key, and go away with it. Other mods' windows and the Wax panel stay as they are. Ask for the key with the key option of your first window. Without it Wax gives your mod a free key and tells the player once.

init.lua
local window = ui.Window({ title = "Garage", key = "F6", width = 300, height = 160 })
window:Label("F6 shows and hides the windows of this mod.")

local second = ui.Window({ title = "Garage tools", width = 260, height = 140 })
second:Label("This one comes up with the same key.")

The player can change the key on your mod's card of the Mods page. The menu says how to read and set it from code.

Pages down the side

Give a window nav = "side" and it gets a list of pages on the left. window:Page adds a page. Add controls to the page, not to the window.

init.lua
local window = ui.Window({ title = "Pages", nav = "side", width = 460, height = 260 })

local home = window:Page("Home", { icon = "home" })
home:Title("Home", "Pages are listed down the side.")
home:Button("Start", function()
    ui.Notify("Started.")
end, { primary = true })
home:Toggle("Remember me", true)

local players = window:Page("Players", { icon = "users" })
players:Label("Nobody else is here.")

local settings = window:Page("Settings", { icon = "settings", bottom = true })
settings:Label("This page sits at the foot of the list.")

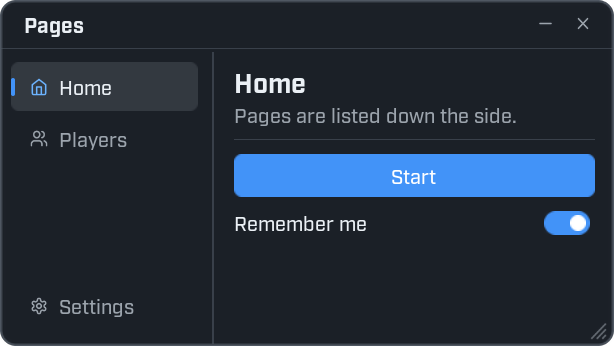

A window titled Pages with a list on the left: Home, which is selected, Players, and Settings at the bottom. The Home page shows a title, the line Pages are listed down the side, a blue Start button and a Remember me switch.

The first page you add is the one that shows first. The user can drag the line beside the list to make the list wider.

Pages along the top

With nav = "top" the pages become tabs. The tabs are all the same width, and the window cannot be made narrower than its tabs need.

init.lua
local window = ui.Window({ title = "Tabs", nav = "top", width = 400, height = 210 })

local overview = window:Page("Overview")
overview:Label('With nav = "top" the pages are tabs along the top.')
overview:Progress("Level", 0.4)

local details = window:Page("Details")
details:Label("More to read here.")

local about = window:Page("About")
about:Label("Made with Wax.")

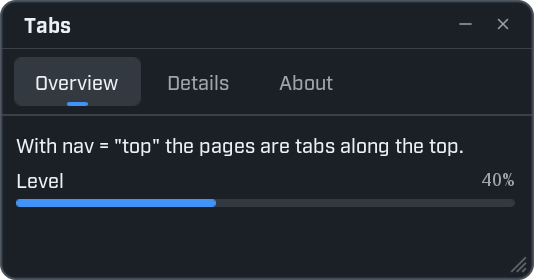

A window titled Tabs with three tabs along the top: Overview, which is selected, Details and About. The Overview page shows one line of text and a progress bar called Level at 40 percent.

Page options and functions

Option of window:Page(name, options)What it does
iconAn icon shown before the page's name.
bottomtrue lists the page at the foot of a side list. Good for a settings page.
scrollfalse makes a page that does not scroll. A Grid or Console on it then fills the space that is left.
FunctionWhat it does
window:Page(name, options)Adds a page and gives it back.
window:SelectPage(name)Switches to the page with that name.
window:RemovePage(page)Removes a page and everything on it.
window:SetNavWidth(width)Sets the width of the side list.

If you add a control straight to a window that has pages, Wax puts it on a first page called Main.

Load more when the user reaches the end

A page has a signal called NearEnd. It fires when the user scrolls close to the bottom. Use it to add more as the user scrolls.

init.lua
local window = ui.Window({
    title = "Endless", nav = "top", width = 360, height = 300,
})
local page = window:Page("Numbers")

local count = 0
local function add_more()
    if count >= 200 then return end
    for _ = 1, 20 do
        count = count + 1
        page:Label("Line " .. count)
    end
end

add_more()
page.NearEnd:Connect(add_more)

NearEnd also fires a few times a second while the page is not full yet. So do nothing when there is no more to add, as the first line of add_more does.

For very long lists, use a Grid instead.

A status bar

window:StatusBar() adds a line along the bottom of a window. Use it to say what your mod is doing.

init.lua
local window = ui.Window({ title = "Status bar", height = 145 })
window:Label("A status bar sits along the bottom of a window.")

local status = window:StatusBar()
status:Set("3 of 4 mods loaded", { kind = "good", icon = "check-circle" })
status:Progress(0.6)
status:Right("v1.2")

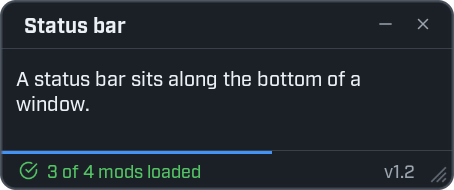

A window titled Status bar. Along its bottom edge a green tick and the text 3 of 4 mods loaded sit on the left, v1.2 sits on the right, and a thin blue line above them is filled to about 60 percent.
FunctionWhat it does
status:Set(text, options)Shows a message. kind sets the colour: "info", "good", "warn" or "bad". icon adds an icon.
status:Busy(text)Shows a message with a spinning circle, until the next Set.
status:Progress(amount)Shows a thin line across the bar, from 0 to 1. nil hides it.
status:Right(text)Shows text at the right-hand end.
status:Clear()Empties the message and hides the line.

This example shows a status bar while a task counts through ten steps:

init.lua
local window = ui.Window({ title = "Working", height = 160 })
local status = window:StatusBar("Ready")

window:Button("Start", function()
    status:Busy("Working...")
    for step = 1, 10 do
        task.wait(0.2)
        status:Progress(step / 10)
    end
    status:Progress(nil)
    status:Set("Done", { kind = "good", icon = "check" })
end)

Every function is listed in the ui reference.
